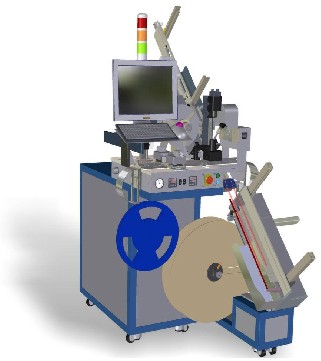

Gravity-Feed Electrical Test, Vision Inspection, & Taping System |
|
 FETURES |
- Highest Speed in Its Class
- Unlimited Package Handling Capability with the Industry’s Best Change-over Time
- Complete Inspection Solution
- Electrical Test Option
- Smallest Footprint
- Unmatched Cost/Performance
|
| SPECIFICATION |
Item |
Specification & Description |
Standard Features |
- Stack-tube to tape
- Stack-tube to tube (2 tubes)
- Quick-change Kit c/w auto-sensor-clean, auto-piggyback-clear and auto-ID
- Programmable 2-tube sort-bin
|
Package Handling Capability |
- Any package from tube medium through quick-change kit |
Sprint Rate |
- 9000 UPH minimum (Stack-tube to tape, SOIC Narrow body, on-track mark/2D/3D inspection) |
Performance |
- Jam rate better than 1/3000 (incoming material dependent)
- Machine Uptime > 95% (total available time minus scheduled down time)
|
Optional Features |
�X 1.On-track mark/2D inspection
�X 2.In-pocket mark/2D inspection c/w counter-reflection-algorithm & auto-unit-replacement
�X 3.On-track mark/2D/3D inspection
�X 4.Seal inspection
�X 5.Post-seal unit mark/2D inspection
�X 6.OCR&V (Optical Character Recognition & Verification)
�X 7.Package defect inspection
�X 8.Auto-focus & auto-zoom on any inspection
�X 9.Open/short electrical test contact
�X 10.Functional electrical test contact
�X 11.Open/short tester with self-teach feature
�X 12.Stack-tube to stack-tube
�X 13.Programmable multi-tube sort-bin |
Package Handling Capability |
�X Any package from tube medium through quick-change kit
|
Taping Capability |
�X 1.Seal type: Heat or pressure seal
�X 2.Carrier tape width from 8 to 56 mm (other sizes are optional)
�X 3.Auto-release carrier tape spool input
�X 4.Adjustable seal pressure, temperature & dwell time
�X 5.Interchange-able seal blade with various length & width to suite specific sealing requirement |
Typical Change-over Time |
�X 1.QuickChange Kit: 5 mins
�X 2.Carrier Tape: 3 mins
�X 3.Vision Calibration: 10 mins (5 mins with optional auto-focus/zoom)
�X 4.Software Recall: 1 mins
�X 5.Mechanical realignment: 0 – 10 mins (option dependent)
|
Inspection Capability |
�X 1.Mark Criteria: missing mark, wrong marking, mark angle, orientation, etc.
�X 2.Lead Criteria: bend, pitch, span, skew, coplanarity, standoff, lead count, missing lead etc.
�X 3.Package Criteria: Scratch, crack, void, chip etc.
�X 4.Accuracy: up to 12 micron (0.3 mil) at 3 sigma
�X 5.Repeatability: static 3D GRR <= 6%, dynamic 3D GRR <= 10%
�X 6.Variable light source solution: manual or programmable (can be stored & recalled) of light intensity and direction for optimum illumination |
Dimension & Weight |
�X Width: 907 mm (35.7”) typical, 1,100 mm (43.3”) with stack-tube output option
�X Depth: 1031 mm (40.6”) typical, 1,533 mm (60.4”) with stack-tube output option
�X Height: 1,800 mm (70.9”) typical
�X Weight: 200 kg (440 lb) typical |
Facility Requirement |
Power: 110/230 VAC, 60/50 Hz, 2000 watt max
Compressed Air: 5 bar (74 psi) minimum at maximum flow-rate of 450 L/min (16 cfm) |
